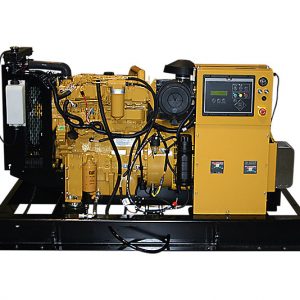

Máy Phát Điện CAT C4.4 (50HZ)

AIR INLET SYSTEM

• Air cleaner; light duty with disposable element

COOLING SYSTEM

• Radiator and cooling fan with guards
• Coolant drain line with valve
• Fan drive, battery charging alternator drive
• Caterpillar extended life coolant

EXHAUST SYSTEM

• Stub pipe, gaskets, raincap and SAE exhaust flange for customer use – shipped loose

FUEL SYSTEM

• Standard open set fuel tank / base supplied base, formed steel with single wall integral 8-hour fuel tank

GENERATORS AND ATTACHMENTS

• 12 leads
• IP23 protection
• Voltage regulator (single phase sensing)
• Tower panel, IP22, bottom cable entry
• Segregated low voltage (AC/DC) wiring panel
• Circuit breaker, IEC, 3 pole, mounted in tower panel

GOVERNING SYSTEM

• Mechanical and electrical governing system – model dependent

LUBE SYSTEM

• Lubricating oil
• Oil drain line with valve

MOUNTING SYSTEM

• Captive linear vibration isolators between base and engine-generator
• Includes lifting provision and drag points
• Termination points for coolant and lube oil drain lines

STARTING/CHARGING SYSTEM

• 24V battery with rack and cables

GENERAL

• Engine and alternator pre-paint, Caterpillar Yellow

MÁY PHÁT ĐIỆN CATERPILLAR C4.4

C4.4 (50 HZ) OPTIONAL EQUIPMENT

ALTERNATOR SYSTEM

• R frame auxilliary winding
• LC frame alternator
• LC frame alternator with coastal insulation protection
• Permanent magnet
• 3 phase sensing
• Quadrature droop kit
• Anti-condensation heater

CIRCUIT BREAKERS

• Circuit Breaker Upgrades – 4 Pole circuit reaker to 250A, 400A and 630A

COOLING SYSTEM

• Coolant heater
• Low coolant temp alarm
• Low coolant level shutdown

CONTROL PANELS

• EMCP 4.2

CONTROL PANEL OPTIONS

• Volt free contacts
• Speed adjust potentiometer
• Voltage adjust potentiometer
• Panel mounted audible alarm
• Earth fault (2 wire only)
• Earth leakage (2 wire only)
• Overload shutdown via breaker
• Battery charger
• Emergency stop with key
• Control panel heater

ENCLOSURES

• Sound attenuated Level 2 enclosure
• Sound attenuated Level 1 (galv)
• Rental pack – CAE rental option only
• CEE form sockets – CAE rental option only
• Socket blanking plate – CAE rental option only

EUROPEAN CERTIFICATIONS

• Upgrade to STD set for CE

FUEL SYSTEM ACCESSORIES

• Open set narrow base
• Compact skidbase for open set
• Skidbase for CALG enclosure sets
• Bunded fuel tank
• Low fuel level shutdown
• Low fuel level alarm
• High fuel level alarm

GLOBAL CERTIFICATIONS

• Certification for CIS

MOUNTING OPTIONS

• Electronic governor
• Battery removal
• External single point lift – enclosure
• Industrial silencer
• Residential siliencer
• Silencer installation kit

POWER TERMINATION

• Circuit breakers, IEC compliant
• Circuit breakers, UL listed

SPECIAL PACKING/INSPECTONS FOR SHIPMENT

• PGS test report @ 1.0 power factor
• PGS test report @ 0.8 power factor

GENERAL – ACCESSORIES / MISCELLANEOUS

• Stone guards / rad trans flange
• Packing case – compact set
• Packing case – canopied set
